CANYON RIDGE® Carriage House 4 Layer Construction

Insulated carriage house garage doors with faux wood-look overlays on a steel base.

Clopay’s Canyon Ridge® Carriage House 4-Layer garage doors add character and charm to your home. Enjoy the authentic look of swing-out coach house doors paired with the modern-day functionality of upward operation. Not only beautiful, these doors provide quiet operation and energy efficiency for years to come.

OVERVIEW

OVERVIEW

Clopay Canyon Ridge® Carriage House (4-Layer) garage doors bring together the carriage house designs of the past and today’s technology, functionality and energy efficiency. These doors are constructed with steel for strength and durability, and molded composite overlays for beauty and realism. These doors feature:

  • 4-layer construction: steel + insulation + steel + composite overlay.
  • Faux wood-look composite overlay available in Clear Cypress for Ultra-Grain® color options and in Mahogany for solid colors.

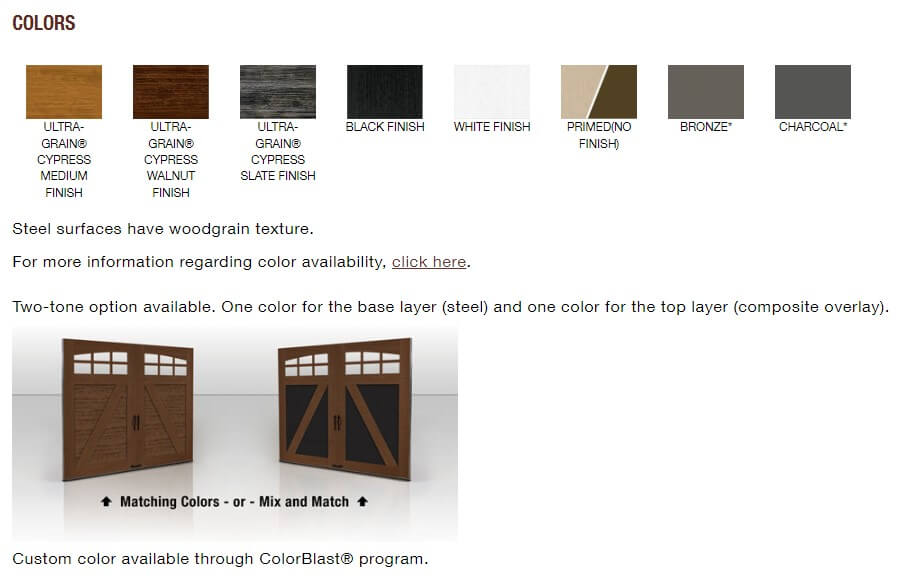

  • Colors include: Ultra-Grain Walnut, Ultra-Grain Medium, Ultra-Grain Slate, Black, White, and Primed.
  • 2″ Intellicore® polyurethane insulation with a thermal break. R-Value of 18.4.
  • WINDCODE® door reinforcement product available for high wind load applications.



ENVIRONMENTAL ASSURANCE

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

  • California SB 1013
  • Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
  • New Jersey A-5583/S-3919 – Greenhouse Gas Bill

DESIGN OPTIONS

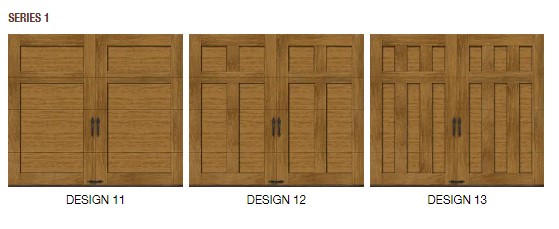

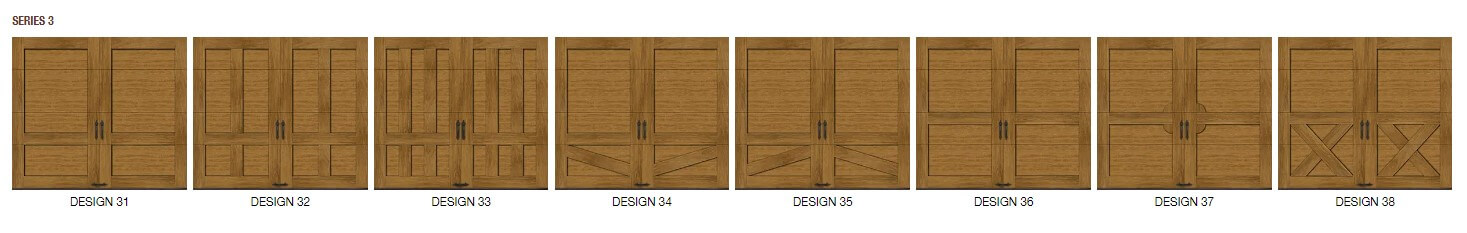

DOOR DESIGNS

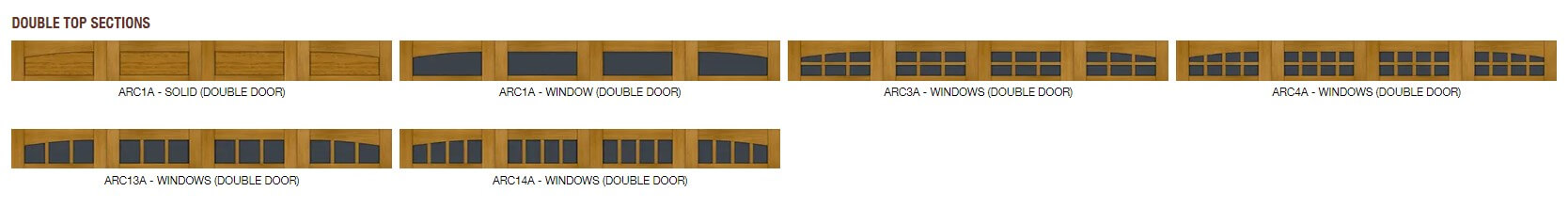

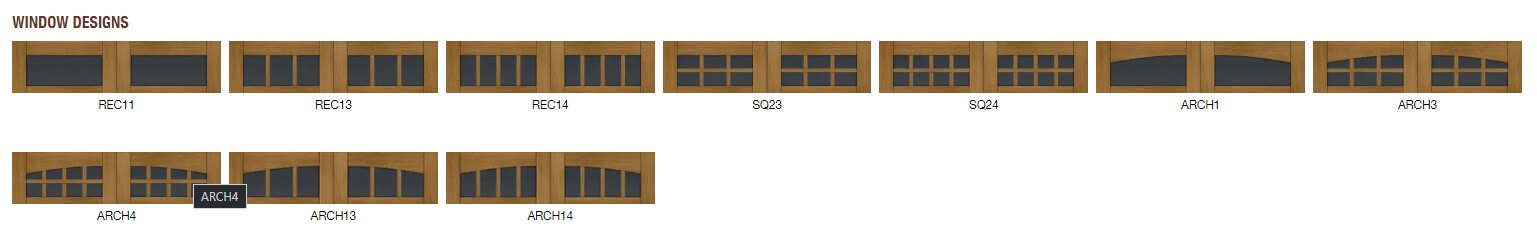

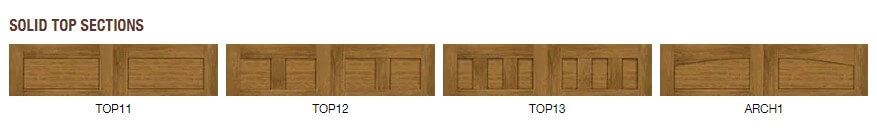

TOP SECTIONS

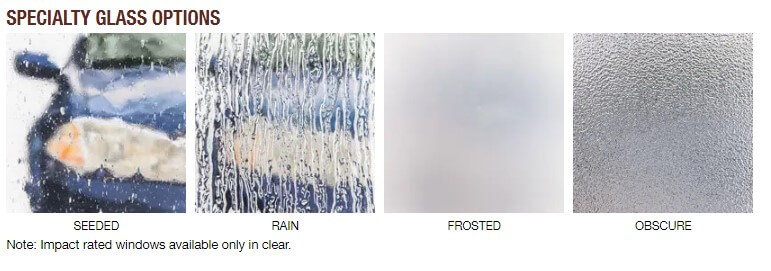

SPECIALTY GLASS OPTIONS

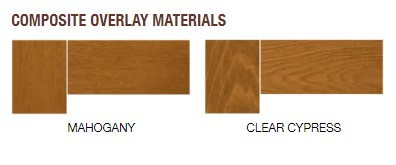

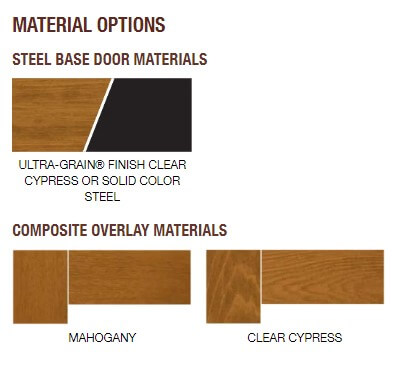

MATERIAL OPTIONS

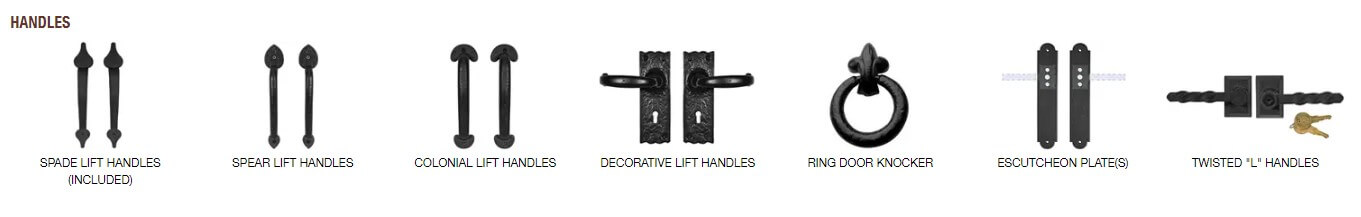

HARDWARE DESIGNS

CONSTRUCTION

Clopay® Canyon Ridge® Carriage House (4-Layer) garage doors are built with a strong base door and overlays. The faux wood-look composite overlays are low maintenance, durable and won’t rot, warp or crack.

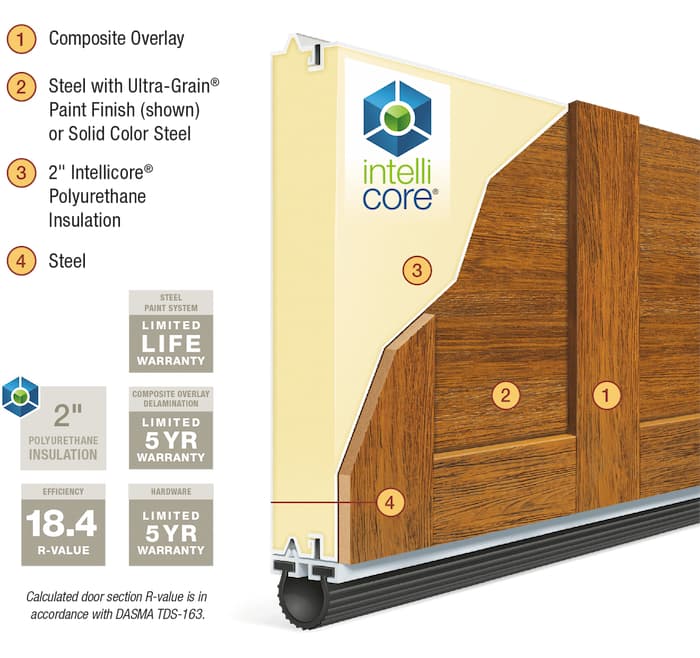

cut away 4 layer
intellicore logo
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency and durability.
  • Door sample shown in Medium Finish.
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
  • Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.
  • Window grilles are removable for easy cleaning.
  • Safe-T-Bracket® – Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Rust-Prevention System – Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pretreatment and a baked on primer and top coat.
  • Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
