CANYON RIDGE® Modern

Insulated modern style garage doors with faux wood-look composite overlays.

Canyon Ridge® Modern garage doors combine the beautiful look of wood with contemporary design. Streamline the look of a traditional home or add a sophisticated touch to a modern or mid-century style exterior with these durable faux wood modern doors.

OVERVIEW

Clopay Canyon Ridge® Modern garage doors provide a wide range of door designs that perfectly complement contemporary homes. These doors are constructed with steel for strength and durability, and molded composite materials for beauty and realism. These doors feature:

  • 4-layer construction including durable, composite, steel, and Intellicore® insulation.
  • 2″ Intellicore® polyurethane insulation with a thermal break.
  • R-Value ranging from 6.3 to 20.4.
  • WINDCODE® door reinforcement product available for high wind load applications.



ENVIRONMENTAL ASSURANCE

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

  • California SB 1013Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
  • New Jersey A-5583/S-3919 – Greenhouse Gas Bill

DESIGN OPTIONS

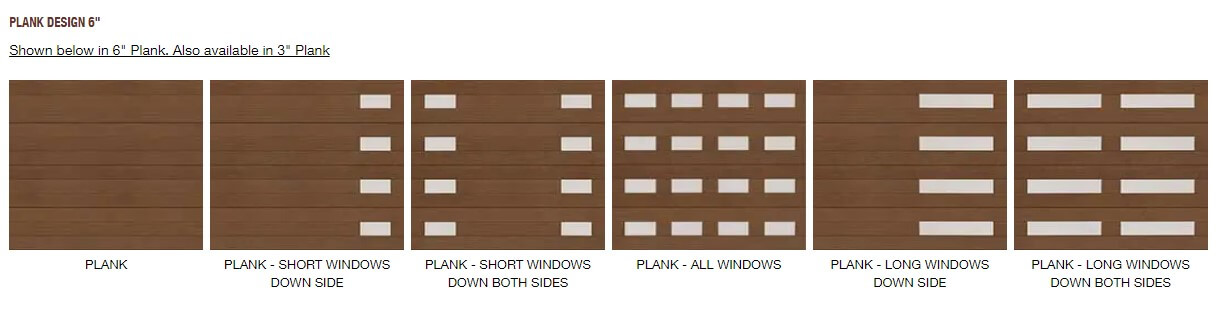

DOOR DESIGNS

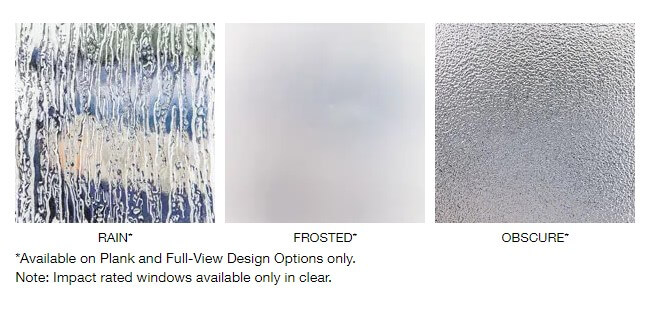

SPECIALTY GLASS OPTIONS

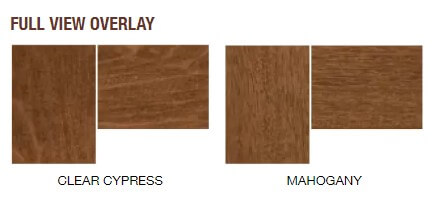

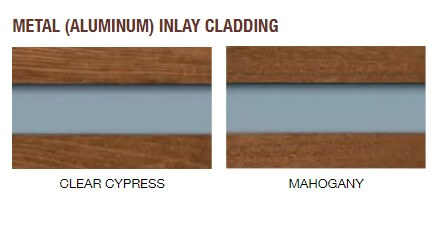

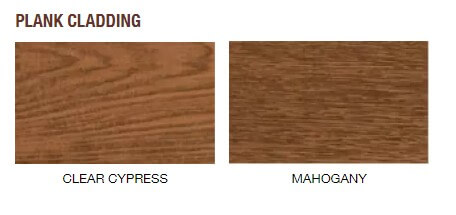

MATERIAL OPTIONS

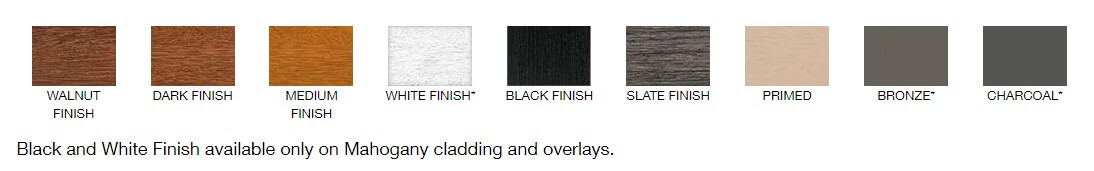

COLORS

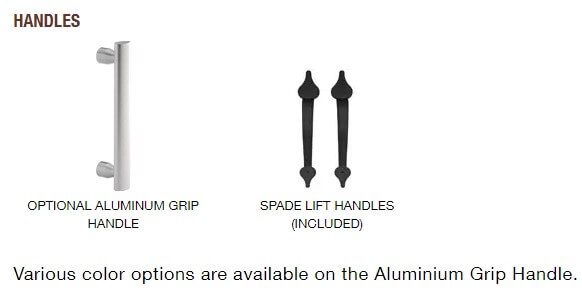

HARDWARE DESIGNS

CONSTRUCTION

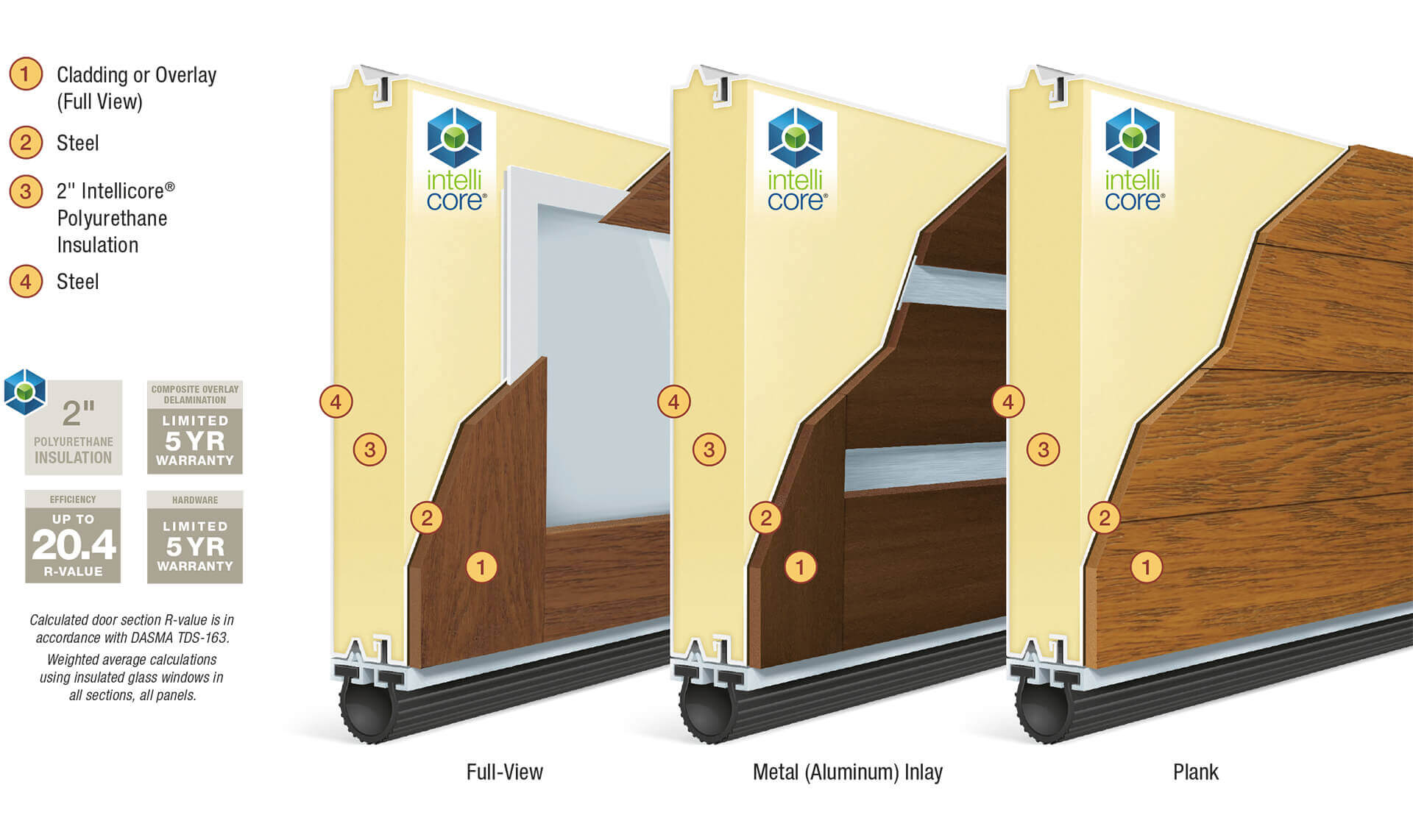

Clopay® Canyon Ridge® Modern garage doors are built with a strong base door and overlays. The faux wood-look composite overlays are low maintenance, durable and won’t rot, warp or crack.

Clopay® Canyon Ridge® Modern garage doors layers



  • Plank design: Faux-wood doors with intellicore® polyurethane insulation. 20.4 R-value.
  • Metal Inlay design:Faux-wood doors with intellicore® polyurethane insulation. 18.4 R-value.
  • Full View design: Faux-wood doors with intellicore® polyurethane insulation. 6.3 R-value.
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
  • Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.
  • Safe-T-Bracket® – Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)

Intellicore insulation technology

Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency and durability.

Rust-Prevention System
Rust-Prevention System
